Floor-rail refrigerator (freezer) box and door foaming equipment

　　Product brief description and main parameters:

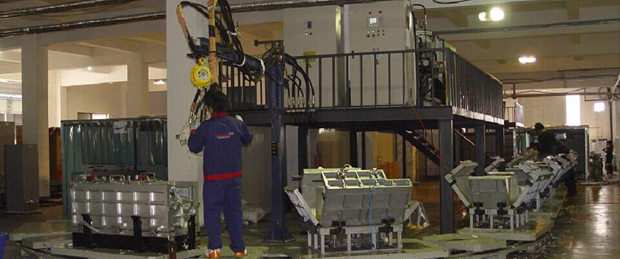

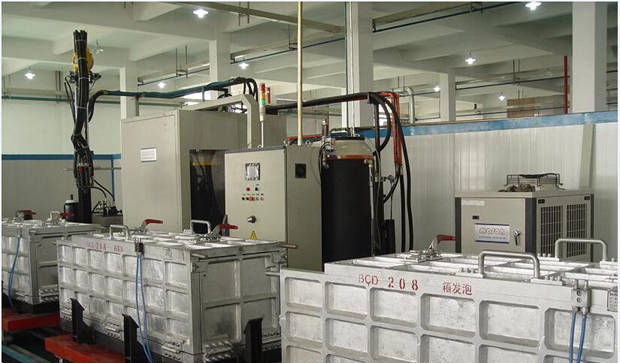

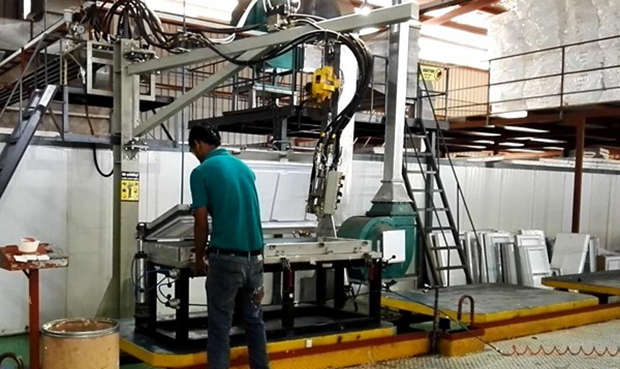

The foaming line consists of chain drive system, foaming fixture, oven, foaming machine platform, steam heating and exhaust system, filling manipulator, unlocking mechanism, conveying trolley, opening and closing cover guide rail, auxiliary clamping device and supporting equipment Pneumatic system, hydraulic system, electric control system and other parts. The foaming line mainly manually (automatically) move the upper case (door), clamp mold clamping, hand (automatic) vertical filling, cycle drive, heating and curing cycle, clamp unlocking, clamp opening, hand (automatic) lower case ( Door), foam cleaning and other processes.

　　The foaming line has the characteristics of compact structure, simple operation, stable transmission, convenient product replacement, and high production efficiency.

　　General technical performance parameters (Note: If customers have special process requirements, they can be customized according to their needs)

　　Dimensions: ~ 29500×7950×3350mm (LXWXH)

　　Number of stations: 26

　　Fixture template size: 2000×900mm;

　　Mold base closed height: 200 mm (can be determined according to customer requirements);

　　Production cycle: 20s (excluding manual operation time);

　　Heating method: steam heating or oil mold temperature machine heating;

　　Foaming medium: POL mixed cyclopentane+ISO or POL mixed 141b+ISO;

　　Injecting method: open mold manually and vertically inject;

　　Steam capacity: 200M3/h

　　curing oven temperature: 55±5℃

　　Steam temperature: 120~150℃

　　Compressed air source: working pressure ≥0.5Mpa, flow rate about 0.1m3/min;

　　Electric capacity: heating with steam about: 25Kw (3890V, 50Hz),

　　Use oil mold temperature machine to heat about: 145Kw
