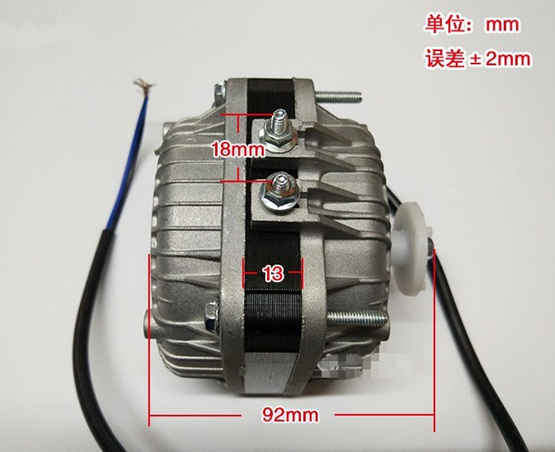

Shaded pole refrigerator motor

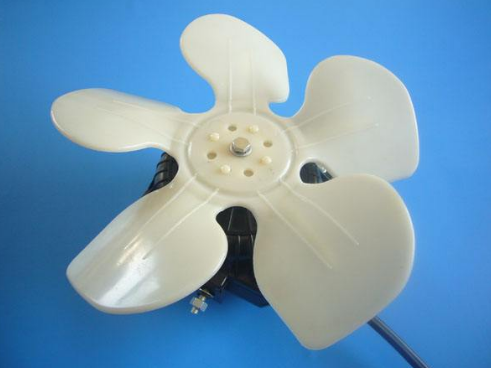

　　This motor coil is made of copper. There are YZF5-13, YZF10-20, YZF 16-25 and other models, which are used for ventilation of condensers and radiators. Voltage 220V and 110V are optional; installation method has bracket H54, 72, 84, 105mm; mesh cover Φ200-300mm, flange ring Φ154mm, Φ172mm, Φ200mm, Φ230mm, Φ254mm, Φ300mm; fan diameter Φ154, 170, 200, 230, 250, 300mm can be Optional, input power 25-100W optional, speed 1300r/min.

　　Use environment:

　　1. Non-corrosive gas and dust-free place 2. Ambient temperature: -25℃～+60℃ 3. Relative humidity: ≤95% (30±5℃) 4. Altitude does not exceed 1000M

　　Advantages: No electromagnetic noise at startup, stable operation and long service life.
