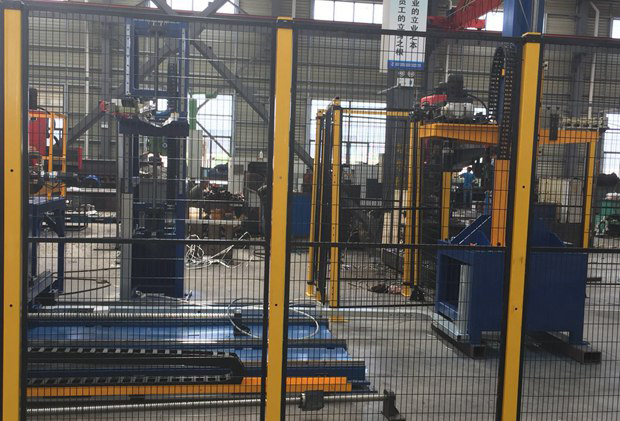

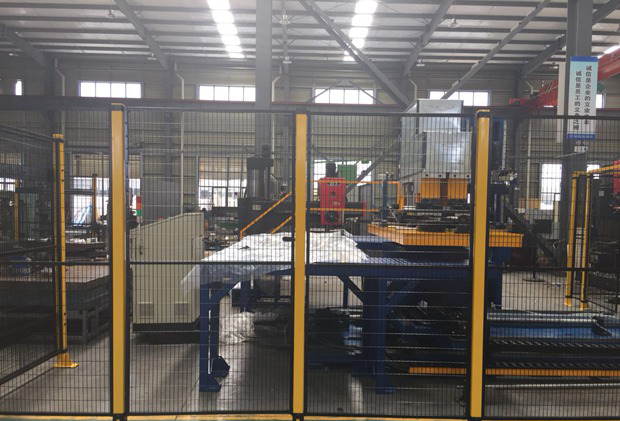

Special machine equipment for inner bladder winding pipe of CNC freezer

　　Product brief description and main parameters:

　　The pipe winding machine is suitable for automatic pipe winding operation of aluminum pipe outside the inner tank of the freezer. The equipment is mainly composed of uncoiling device, straightening and lifting equipment, mold rotation equipment, pipe winding mold and matching electronic control system.

　　General technical performance parameters (Note: If customers have special process requirements, they can be customized according to their needs)

　　 1. Applicable pipe material: aluminum pipe or copper pipe, pipe diameter 7-9.5mm, wall thickness 0.75mm;

　　 2. Workpiece size range: L (640-2200mm) × W (600-900mm) × D (420-650mm);

　　 3. Production cycle: (depending on the total length of the coil) ≤45s-300s(about)

　　 4. Electric capacity: about 15KVA (380V, 50Hz)

　　 5. Equipment color: designated by Party A or according to the color board provided by Party A
